XVI32: Printing

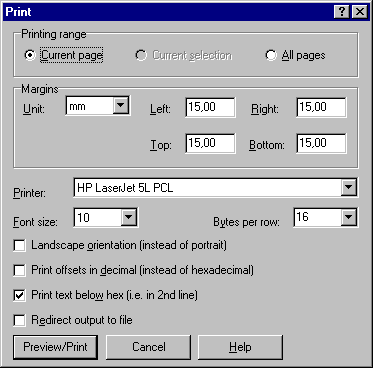

You can select a printer, the font size and various options. Before printing,
you will always preview
the output with the option to print single pages or
all pages. During printing it is possible to abort. Optionally, you can direct
the output to a file.
Printing range
- only current page
- current selection (marked block)
- all pages
Margins
- in millimeters or inches
- adjust left, right, top, and bottom margin
- values below the physical printable area margins will be automatically corrected
- you can't set the paper size, because the margins are applied to the printer's default paper size
Output format
- portrait or landscape
- number of bytes per row
- offset in hexadecimal or decimal format (always zero-based, independent from the options settings)
- print text below (in 2nd line) or on the right side
Output with text on the right side looks like follows:
Offset hex. 00 01 02 03 04 05 06 07
000000000: 41 42 43 44 45 46 47 48 ABCDEFGH
000000008: 49 4A 4B 4C 4D 4E 4F 50 IJKLMNOP
Output with text below (in 2nd line) looks like follows:
Offset hex. 00 01 02 03 04 05 06 07
000000000: 41 42 43 44 45 46 47 48
A B C D E F G H
000000008: 49 4A 4B 4C 4D 4E 4F 50
I J K L M N O P
